Zetagi - V-4

Product code: 905007

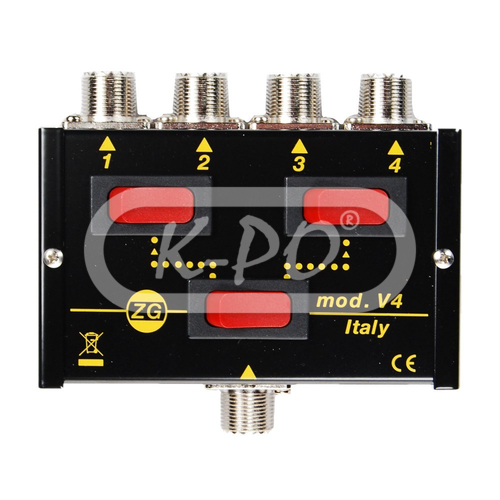

The Zetagi V-4 is a 4 way antenna switch with a UHF (PL) female input connector and 4x UHF (PL) female output connectors.

Frequency range: Up to 30 MHz

Shipped today

€47.95 (39.63 excl. 21% VAT)

Email

Notify Me

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Electrical data

• Impedance: 50 Ohm
• Insertion loss: Less than 0.2 dB
• Max output power: 500 W AM

Mechanical data

• Connector(s) type in: UHF (PL) female
• Connector(s) type out: UHF (PL) female
• Length: 105 mm
• Height: 38 mm
• Width: 110 mm
• Weight: 350 gram
