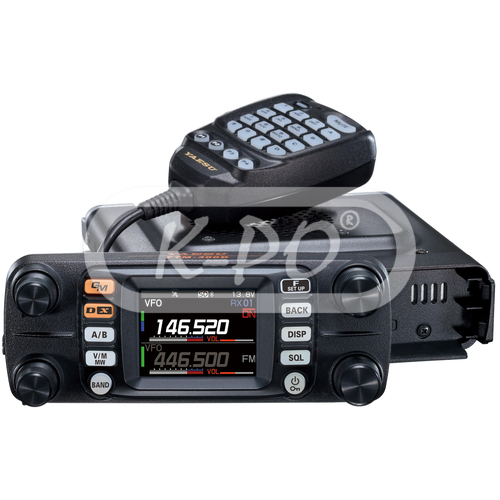

Yaesu - FTM-300DE

Product code: XAH071M311-0E

Factory code: XAH071M311-0E

Barcode: 4909959171044

The new Yaesu FTM-300DE is a dual band digital mobile transceiver with 50W power and can be used on the C4FM/FM 144/430MHz frequency.

Stable 50 Watt Output

The Yaesu FTM-300DE provides stable and reliable 50W RF power output. As in recent YAESU mobile transceivers, the FTM-300DE is also equipped with a heavy-duty heat sink that includes our exclusive FACC (Funnel Air-Convection Conductor – Wind Tunnel). Real Dual Band Operation (V+V, U+U, V+U, U+V) is available with two independent receivers, and the FTM-300DE supports simultaneous C4FM digital monitoring for both the A and B bands.

High-resolution display

A 2-inch High-Resolution QVGA Full-Color TFT Display clearly highlights the frequency and operation bands.

Memory Channel Band Auto Grouping

Memory Channel Band Auto Grouping (MBAG) is one of the advanced features of the FTM-300DE. Memory channels are automatically categorized in each band, and memory channels can be easily and quickly recalled by 4 Band Groups - Airband(M-AIR), VHF(M-VHF), UHF(M-UHF) and 174-400MHz/ 480-999.99MHz (M-GEN).

Clear audio

3W audio power speaker ensures a clear and crisp audio – that has been specifically tuned for quality audio. Two individual external speaker jacks are provided. Users can output the VFO A and B band Receiver to separate speakers or mix A and B signals when a single external speaker is used.

Bluetooth support

Built-in Bluetooth unit is installed in the FTM-300DE. This enables the hands-free operation with the Yaesu SSM-BT10 or a commercially available product. The SSM-BT10 is equipped with a PTT button and also supports VOX operation. Using the new USB charger cable – SCU-41 with the controller of the FTM-300DE, the SSM-BT10 can be easily charged. The SSM-BT10 works for approximately 20 hours on single charge.

WiRES-X

The FTM-300DE supports both the WiRES-X Portable Digital Node function and Fixed Node function with the HRI-200. Since simultaneous C4FM monitoring on both VFO A and VFO B is possible, users can enjoy both WiRES-X communications on one channel while monitoring another local channel at the same time.

Frequency range: TX: 144-146 / 430-440 MHz, RX: 108-999.99 MHz

Shipped today

€419.95 (347.07 excl. 21% VAT)

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Features

Display: High Resolution, Full color, QVGA TFT Display, 2.0 inch
VOX function: Yes
DTMF: Yes
Mode of emission: F1D / F2D / F3E / F7W
Bluetooth: Version: 4.2 / Class: 2
Operating System: Yes, E2O-III
Memory Auto Grouping (MAG): Yes, Memory channels can be easily grouped and recalled by band. Each time the [BAND grp] key is pressed while operating in memory mode, the bands are switched in the order illustrated below.
Digital Code squelch (DCS): Yes, DCS (Digital Coded Squelch) function allows audio to be heard only when signals containing the matching DCS code are received.
New PAGER (EPCS): Yes, This new feature allows calling specified stations only, by using a pager code that combines two CTCSS tones.
VFO Band Skip: Yes, The VFO band selection is enabled by pressing the [BAND grp] key. Also, unused bands may be skipped.
Automatic Packet Reporting System (APRS®): Yes, The FTM-300DE uses a GPS receiver to acquire and display its position location information. The APRS feature uses the location information to transmit the position information, data and messages, using the format developed by Bob Bruninga WB4APR
Data communication: Yes, 1200/9600bps APRS® Data Communication
WiRES-X: Yes, Portable Digital Node or HRI-200 Fixed Node capability
Voice recording: Yes, of the received and transmitted audio
GPS: Yes, built-in 66ch High precision GPS receiver and External GPS device connectivity
Digital Personal ID (DP-ID): Yes, Digital Personal ID (DP-ID) feature opens the speaker audio only when a C4FM signal
MicroSD card slot: Yes, up to 32 GB
External DATA jack: Yes
External speaker socket: Yes, ext SP A and SP B

Electrical data

Frequency step: 5 kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 50 kHz / 100 kHz /
Channels: 1104
Operating temperature: -20℃ to +60℃
Frequency stability: ±2.5 PPM
Operating voltage: 13.8 Volt (Negative Ground)
Current consumption: RX: 0.5 A / TX: 11 A (50W 144 / 430 MHz)

Transmitter

Power output (Watts): 5/25/50 Watts
Spurious Emission: ≤ 60 dB
Modulation type: F1D / F2D / F3E: Variable Reactance Modulation / F7W: 4FSK (C4FM)
Maximum deviation: ±5.0 kHz
Antenna impedance: 50 Ω
Microphone impedance: 2k Ω
DATA Jack impedance: 10k Ω
