Sirio - Turbo 5000 PL Sirio - Turbo 5000 PL

Sirio - Turbo 5000 PL

Product code: 220220543
Factory code: 2202205.43
Barcode: 8056182112347

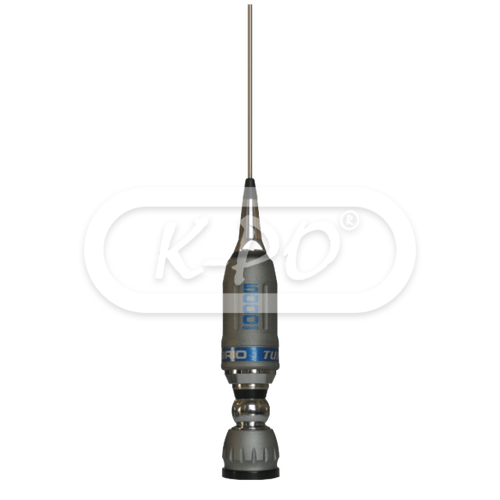

One of the best alternatives for the discontinued Sirtel Santiago 1200. High power vehicular antenna working on 27 MHz or 10 meter band. Low loss coil, 2.5 mm copper wire.

Frequency range: 27 - 30 MHz
Out of stock - Longer delivery time
€65.95 (54.5 excl. 21% VAT)

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Electrical data

  • Electrical type: Base loaded
  • VSWR: ≤ 1.2
  • Bandwidth: 2300 kHz (200 channels) ≤ 2.0
  • Maximum continuous power: 1500 Watts (CW)
  • Power peak: 5000 Watts (CW) / duty cycle, 5 seconds on, 5 seconds off
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Copper, chromed brass, stainless steel 17/7 PH, thermoplastic UV
  • Height: 1965 mm
  • Weight: 650 gram

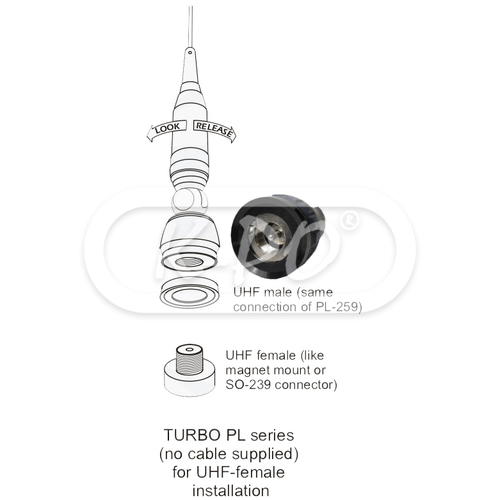

  • Mounting type: On UHF-female (PL) connector (not included)
  • Antenna connector: UHF-male (PL)

Inside the box

  • Antenna: Yes
  • Installation manual: English, Italian

Downloads
