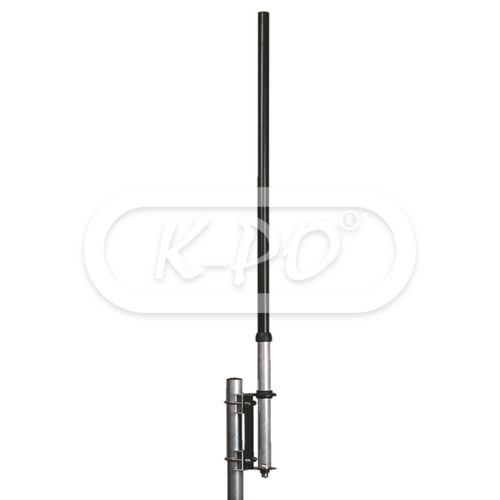

Sirio - Thunder

Product code: 200435

Factory code: 2107902.00

Barcode: 8056182110176

Suitable for temporary installation or when space is limited.

Frequency range: 25 - 29 MHz (no tuning required)

Out of stock - Longer delivery time

€39.95 (33.02 excl. 21% VAT)

Email

Notify Me

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Electrical data

• Electrical type: 1/4 λ helical loaded
• Gain: 0 dBd - 2.15 dBi
• VSWR: ≤ 1.5
• Bandwidth: 5000 kHz ≤ 2.0
• Maximum continuous power: 100 Watts (CW)
• Power peak: 300 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Aluminium, copper, galvanized steel, nylon
• Mast Ø: 25 - 32 mm
• Max wind resistance: 150 km/h
• Height: 960 mm
• Weight: 700 gram
• Mounting type: On mast
• Antenna connector: UHF-female

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 225 06 12 2019 thunder
