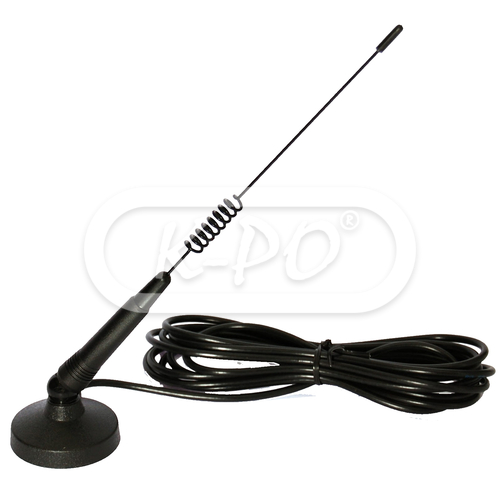

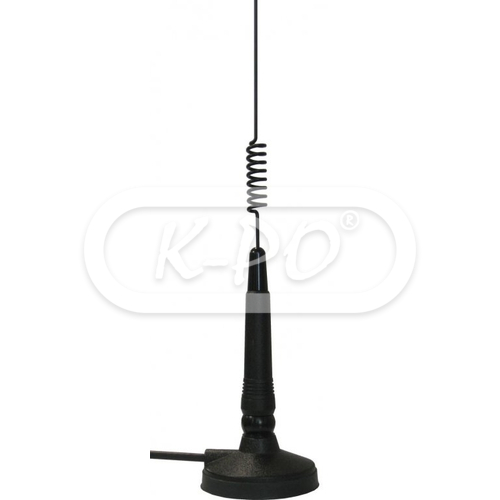

Sirio - Micro 30 S MAG

Product code: 220650673

Factory code: 2206506.73

Barcode: 8056182114419

Reduced dimensions, easy installation and good performance. These are the characteristics of the Sirio Micro 30 S MAG. Completely black chromed stainless steel coil. Supplied with a mini magnet mount for quick installation.

Frequency range: 27 - 27.5 MHz

Out of stock - Longer delivery time

€37.95 (31.36 excl. 21% VAT)

Email

Notify Me

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.4
• Bandwidth: 600 kHz ≤ 2.0
• Maximum continuous power: 10 Watts (CW)
• Power peak: 30 Watts (CW) short time
• Impedance: 50 Ohm
• Cable: Yes
• Cable length: 4.5 meter / RG 58

Mechanical data

• Materials: Copper, stainless steel, thermoplastic UV stabilized
• Height: 350 mm
• Weight: 440 gram
• Mounting type: Magnet

Inside the box

• Antenna: Yes
• Radio connector: UHF-male (PL)
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 287 micro30 06 11 2007
