President - Johnson II VOX President - Johnson II VOX President - Johnson II VOX

President - Johnson II VOX

Product code: 3004343
Factory code: TXPR667
Barcode: 3435991129015

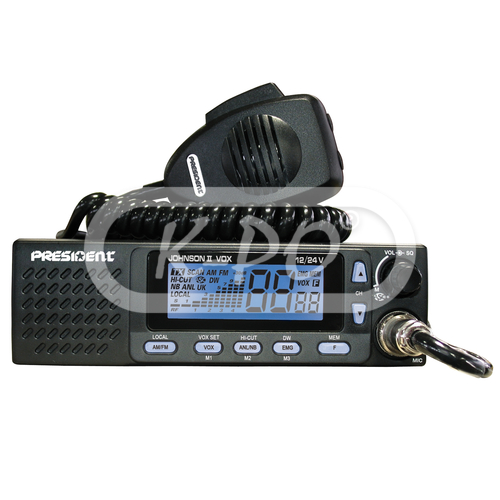

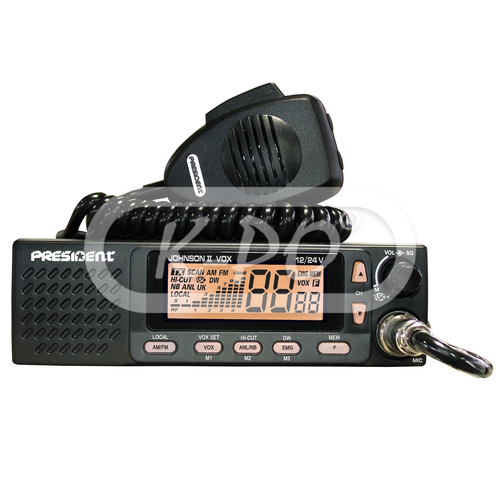

The new 2020 President Johnson II VOX 12/24 with a 3 colour display and VOX function!

Frequency range: 26.965 - 27.405 MHz
Shipped next business day
€284.94 (235.49 excl. 21% VAT)

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Front speaker: Yes
  • Display type: LCD display
  • Display colors: Green / Orange / Blue
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • Scan function: Yes
  • Memory channels: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • TOT (time out timer): Yes
  • Dual watch: Yes
  • External VOX socket: Yes
  • Roger Beep: Yes

Electrical data

  • Voltage: 13,8 Volt / 24 Volt /

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Microphone sensitivity: 3.0 mV
  • Frequency allowance: ± 200 Hz
  • Transmission interference: inferior to 4 nW (- 54 dBm)
  • Emitted power in the adjacent channel: inferior a 20 μW
  • Modulated signal distortion: 1.8 %
  • Drain: 13.2 Volt: <2.0 A / 26.4 Volt: <2.0 A

Receiver

  • AM sensitivity: 0,5 µV - 113 dBm
  • FM sensitivity: 0,5 µV - 113 dBm
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 3 Watt
  • Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
  • Frequency image rejection rate: 60 dB
  • Intermediate image rejection rate: 70 dB
  • Drain: min. 400 mA / max. 1000 mA

Mechanical data

  • Length: 150 mm
  • Height: 52 mm
  • Width: 170 mm
  • Weight: 1000 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Spanish, French, Polish
