Maas - SPA 8230 Maas - SPA 8230 Maas - SPA 8230 Maas - SPA 8230

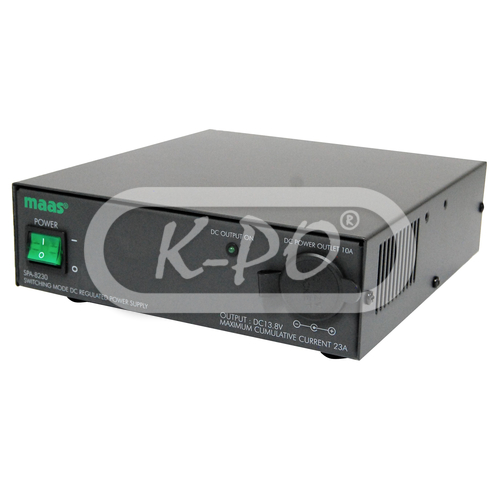

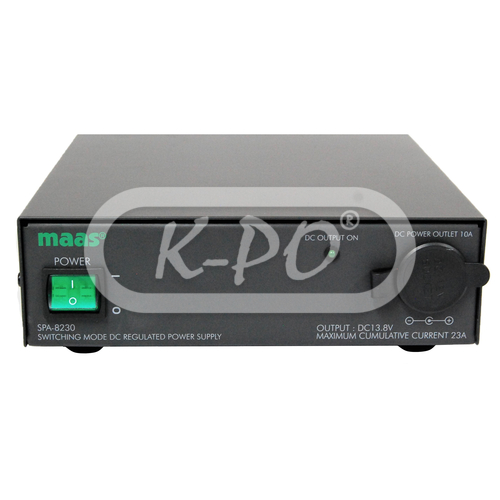

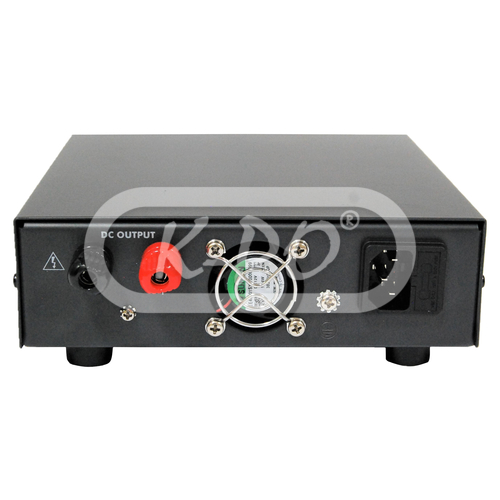

Maas - SPA 8230

Product code: 1484

This variable speed fan cool switching mode is designed for radio application . Its low profile and small footprint housing fit well in place with a host of radio receivers in a tight spot . It has constant current over load , floating ground and Output Over Voltage Protection. The SPA-8230 can be used for equipment till 23A continuous and 25A short.

Shipped today - Stock: 7
€164.95 (136.32 excl. 21% VAT)

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Electrical data

  • Input voltage: 230 Volt / 50 Hz /
  • Output voltage: 13.8 Volt
  • Adjustable output voltage: 13.3-14.5 Volt
  • Continuous load: 23A
  • Peak load: 25A
  • Ripple voltage: ≤100mVp-p
  • Fan: Yes
  • Short circuit protection: Yes
  • Overload protection: Yes
  • Rated output power: 345W
  • Cooling method: Fan cool (0 to full speed)

Mechanical data

  • Length: 181 mm
  • Height: 63 mm
  • Width: 190 mm
  • Weight: 1700 gram

Inside the box

  • Power supply: Yes

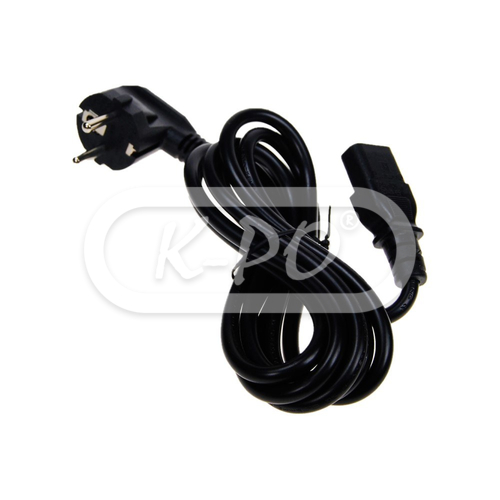

  • AC cord: Yes
  • User manual: English

Downloads
