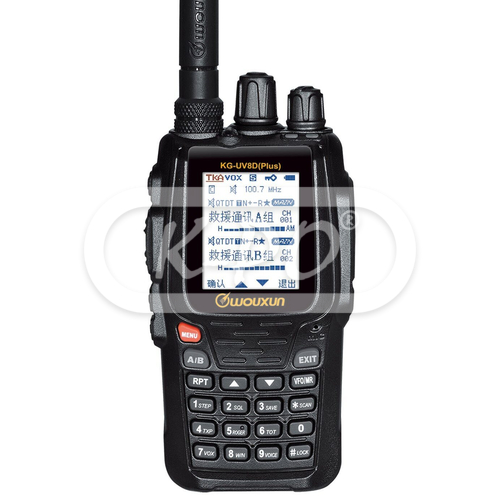

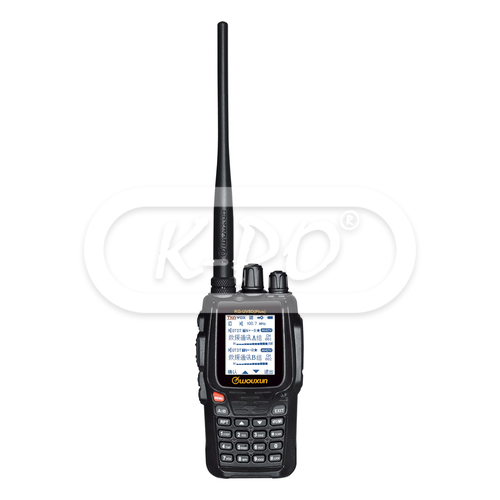

Wouxun - KG-UV8D Plus

Product code: 34790

Barcode: 6946351703488

Duplex Work Mode and Dual Receiving
It can TX on one area while RX on the other area simultaneously , other, RX on the same or different bands of A&B areas simultaneously.

Cross Band Repeater
Frequency offset and direction programmable in repeater Mode UHF/VHF or VHF/UHF cross-band repeater.

Voice Encryption and Non-Standard CTCSS/DCS
CTCSS or DCS create a secret channel between radios , non-standard ctcss or dcs is stronger version , voice encryption function use password encrypt voice data.

Some Improve Functions
Voice compander , backlight intensity can be adjusted , FM radio can be stored and retrieved 20 sets of frequency , power-on message editable.

Frequency range: TX/RX: 144-146 / 430-440 MHz

Out of stock - Longer delivery time

€134.95 (111.53 excl. 21% VAT)

Email

Notify Me

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Features

• Display: Yes,large color display
• VOX function: Yes
• DTMF: Yes, decoding and encoding
• Crossband repeater function: Yes
• Emergency (SOS) function: Yes
• Flashlight: Yes
• Priority channel scan: Yes
• High/low power selection: Yes
• Voice guide: English and Chinese
• Calls: Yes, group and selective calls
• Single-tone pulse frequency: 1000 - 1450 - 1750 - 2100 Hz
• QT/DQT: Yes, decoding, encoding and scan
• Program: Yes, by computer
• Stopwatch: Yes
• Reverse frequency: Yes
• Remote alarm: Yes

Electrical data

• Frequency step: 5 kHz / 6.25 kHz / 10 kHz / 12.5 kHz / 25 kHz / 50 kHz / 100 kHz /
• Channels: 999
• Wide and narrow bandwidth selection: Yes
• Operating temperature: -20℃ to +40℃

Transmitter

• Power output (Watts): VHF: 1-5 Watts / UHF: 1-4 Watts
• Work mode: F2D / F3E
• Antenna impedance: 50 Ohm
• Frequency stability: ±2.5 PPM
• Type of modulation: Wide: 16K F3E / Narrow: 11K F3E
• Max. frequency deviation: Wide: ±5 KHz / Narrow: ≤±2.5 KHz
• Audio response: Wide: 300-3000 Hz +1 to -3 dB / Narrow: 300-2550 Hz +1 to -3 dB
• Adjacent channel selectivity: Wide: ≤70 dB / Narrow: ≤60 dB
• Spurious: Wide: ≤60 dB / Narrow: ≤60 dB
• Modulation distortion: ≤5%

Receiver

• Audio distortion: ≤5%
• Audio power output: ≤500 mW
• Sensitivity (12dB SINAD): 0.25 µV
• Audio response: 300-3000 Hz +1 to -3 dB
• Adjacent channel selection: Wide: ≤70 dB / Narrow: ≤60 dB
• Inter modulation: Wide: ≤65 dB / Narrow: ≤60 dB
• Signal to noise ratio: Wide: ≥45 dB / Narrow: ≥40 dB
• Spurious radiation: ≥60 dB

Mechanical data

• Length: 62 mm
• Height: 125 mm
• Width: 34 mm
• Weight: 490 gram
• Antenna connector: SMA female

Inside the box

• Transceiver: Yes
• Battery: Li-Ion 2600 mAh
• Charger: Desk charger with adapter and 12 V car charger
• Antenna: Yes
• Installation manual: English
• Belt clip: Yes
• Hand strap: Yes
