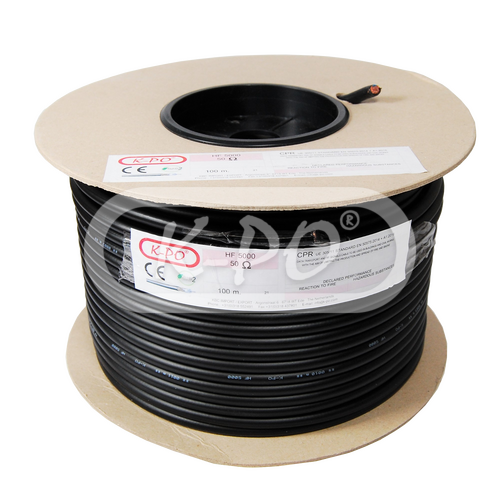

K-PO - HF-5000 K-PO - HF-5000

K-PO - HF-5000

Product code: 7463

The K-PO HF-5000 is one of highest quality low loss coax cable available. The cable is comparable to Aircom cable and with similar specifications.

100 meter on roll, made in Europe.

Shipped today
€334.95 (276.82 excl. 21% VAT)

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

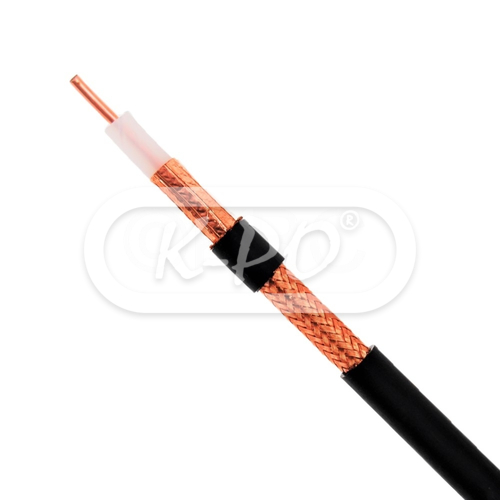

Features

  • Plain copper inner conductor: ø 2,50 mm
  • Low density polyethylene dielectric: ø 6,90 ± 0,20 mm
  • Plain copper outer conductor: 192 x 0,15 mm
  • Percentage coverage: 96%
  • Sheath color: BLACK - RAL 9004
  • Copper weight: 8.85 kg (100m)
  • Cable weight: 14.8 kg (100m)
  • Impedance: 50 ± 3 Ohm
  • Capacitance: 80 pF/m
  • Velocity ratio: 84%
  • Inner conductor resistance: 3,7 Ohm/Km
  • Outer conductor resistance: 5,5 Ohm/Km
  • Temperature range: -40°C to +75°C

    Attenuations dB/100m

  • 5 MHz: 1.0 dB
  • 10 MHz: 1.3 dB
  • 50 MHz: 2.8 dB
  • 100 MHz: 3.6 dB
  • 220 MHz: 5.8 dB
  • 500 MHz: 9.0 dB
  • 600 MHz: 10.2 dB
  • 800 MHz: 11.8 dB
  • 900 MHz: 12.6 dB
  • 1000 MHz: 13.4 dB

Downloads
