AnyTone - SM-0153 mike

Product code: 30579

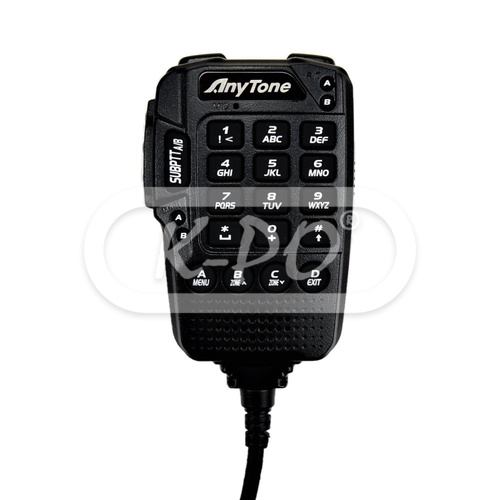

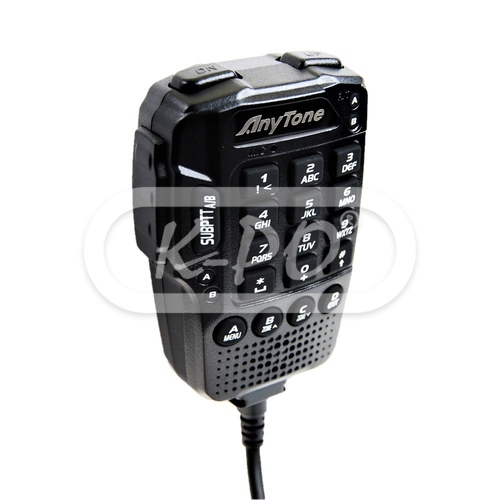

The AnyTone SM-0153 microphone is an original AnyTone microphone and is suitable for the AT-D578UV series.

Out of stock - Longer delivery time

€29.95 (24.75 excl. 21% VAT)

Email

Notify Me

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Features

• Suitable for: AnyTone AT-D578UV
• Up down: Yes
• Lock button: Yes
• A/B Sub PTT: Yes
• A/B channel RX/TX indicator: Yes

Mechanical data

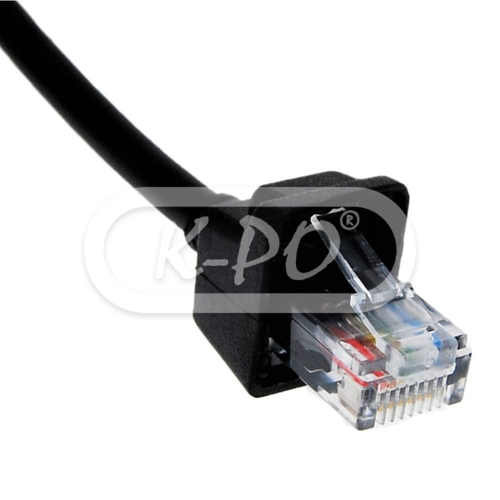

• Microphone connector: RJ45

Microphone wiring

• Receive: Pin 1
• Transmit: Pin 3
• Ground: Pin 8
• 5V: Pin 2
• SP +: Pin 4
• SP -: Pin 7
• MIC GND: Pin 5
• MIC: Pin 6
