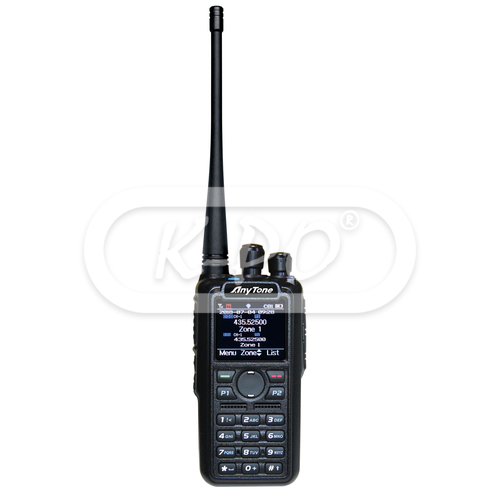

AnyTone - AT-D878UVII Plus

Product code: 30860

Factory code: 30860

Barcode: 6947475212320

Updated version of the popular AnyTone AT-D878UV Plus. Now with Analog APRS RX and 500.000 digital contacts.

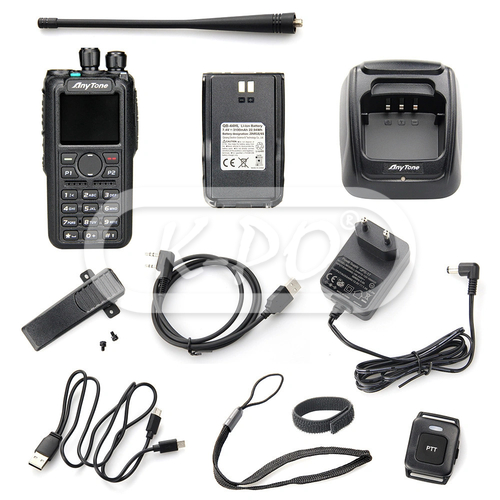

AnyTone D878UVII Plus digital DMR dual-band handheld commercial radio with roaming and GPS VHF/UHF dual-band digital/analog part 90 DMR commercial transceiver with 1.77 inch color TFT display and GPS. New D878 model includes DMR roaming, faster processor and larger memory for future enhancements. Ideal for fire, search & rescue, EMS, police, sheriff,forestry and security operations. Frequency coverage 144-146 / 430-440 MHz. Including USB programming cable.

Please note that the firmware/CPS of the AT-D878UV can not be used for the AT-D878UV PLUS and AT-D878UVII Plus. Using wrong firmware/CPS can damage your radio!

Frequency range: TX/RX: 144-146 MHz / 430-440 MHz

Out of stock - Longer delivery time

€239.94 (198.3 excl. 21% VAT)

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Features

True-2-slot: Yes
Display: Yes, LCD color display
Bandwidth: 2.5 - 25 kHz
VOX function: Yes
DTMF: Yes
2-tone/5-tone: Yes
Ranging function: Yes
Emergency (SOS) function: Yes
High/low power selection: Yes

Electrical data

Frequency step: 12.5 kHz / 25 kHz /
Channels: 4000 + VFO; 10,000 Talk groups with 500,000 digital contacts
Wide and narrow bandwidth selection: Yes
Phase-locked Step: 5 and 6.25 kHz
Operating temperature: -20℃ to +55℃
Operating voltage: 7.4 Volt, DC ± 20% / (2100 mAh/ 3100 mAh)

Transmitter

Power output (Watts): VHF: 1/2.5/5/7 Watts / UHF: 1/2.5/5/6 Watts
Modulation limit: ± 5.0 kHz @ 25 kHz / ± 2.5 kHz @ 12.5 kHz
Adjacent channel power: Wide: ≥ 70 dB / Narrow: ≥ 60 dB
Spurious Emission: Wide: ≤ -36 dB / Narrow: ≤ -36 dB
Audio distortion: ≤ 5%
Frequency stability: ± 2.5 PPM
Hum & noise: Wide: ≥ 40 dB / Narrow: ≥ 36 dB
Error rate: ≤ 3%
4FSK Digital modulation: 7K60FXD: 12.5 kHz (data) / 7K60FXE: 12.5 kHz (data+voice)

Receiver

Sensitivity: Wide: ≤0.25 μV / Narrow: ≤0.35 μV
Digital sensitivity: Wide: 0.3 uV/-117.4 dBm (BER 5%) / Narrow: 0.7 uV/-110 dBm (BER 1%)
Spurious emission: Wide: ≤ -57 dB / Narrow: ≤ -57 dB
Spurious rejection: Wide: ≥ 70 dB / Narrow: ≥ 70 dB
Blocking: 84 db
Hum & noise: Wide: ≥ 45 dB / Narrow: ≥ 40 dB
Audio distortion: ≤5%
Audio power output: 1000 mW / 16Ω
Adjacent channel selectivity: Wide: ≥ 70 dB / Narrow: ≥ 60 dB
