Alinco - EMS-74 DTMF

Product code: 3468

Barcode: 4969182396195

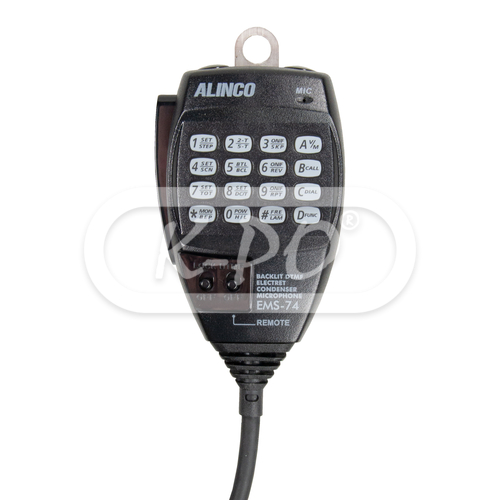

The Alinco EMS-74 DTMF microphone is an original Alinco microphone and is suitable for the Alinco DR-138 and Alinco DR-438.

Shipped today - Stock: 1

€47.95 (39.63 excl. 21% VAT)

Email

Notify Me

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Features

• Suitable for: Alinco DR-135 / Alinco DR-138 / Alinco DR-235 / Alinco DR-435 / Alinco DR-438 / Alinco DR-635 /
• Up down: Yes
• Lock button: Yes
• DTMF: Yes
• Backlit: Yes

Mechanical data

• Cable Length: 2.2 meter

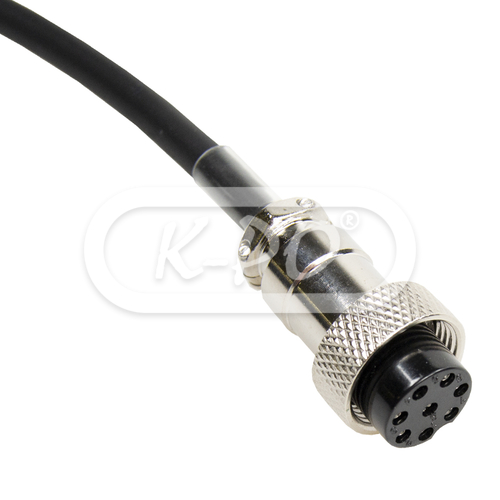

• Microphone connector: 8-pin microphone

Microphone wiring

• Up: Pin 4
• Down: Pin 3
• Mic Audio: Pin 1
• Ground: Pin 8
• PTT: Pin 2
• DC 5 Volt: Pin 5
• Remote: Pin 6
• Mic grounding: Pin 7
