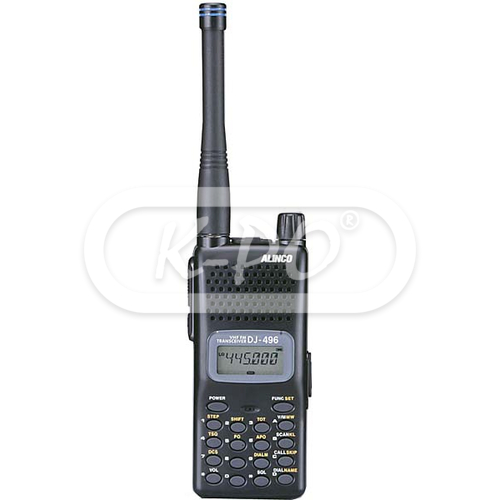

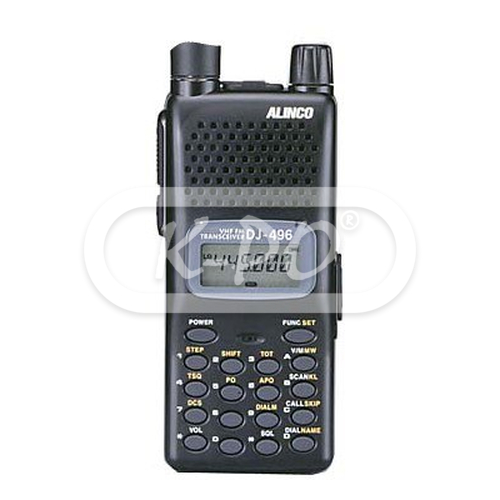

Alinco - DJ-496

Product code: 20496

The Alinco DJ-496 is an UHF handheld transceiver suitable for 430-440 MHz. The DJ-496 will be delivered with a Ni-Cd 700 mAh (9.6 Volt) battery pack.

Frequency range: TX/RX: 430-440 MHz

Shipped today

€69.95 (57.81 excl. 21% VAT)

Email

Notify Me

Your email address wont be shared or used for anything other than being notified of this item being re-stocked.

Features

• DTMF: Yes, 16 buttons keypad
• DCS codes: 104 groups
• CTCSS codes: 39 groups

Electrical data

• Frequency step: 5 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 30 kHz /
• Channels: 40 + 1 call channel
• Operating temperature: -10℃ to +60℃

Transmitter

• Power output (Watts): 5/4/0.8 Watts
• Modulation limit: F3E(FM)
• Spurious Emission: -60 dB or less
• Antenna impedance: 50 Ohm
• Mic. impedance: 2K Ohm
• Frequency stability: ±5 PPM

Receiver

• System: Double-conversion superheterodyne
• Sensitivity (12dB SINAD): 0.25 µV
• Sensitivity: -6 dB: 12 KHz or more / -60 dB 26 KHz or less
• AF output: 280 mW (max) 200 mW (8 Ohm 10% distortion)
• Frecuency: 1st. IF 45.1 MHz / 2nd. IF 455 KHz

Mechanical data

• Length: 56 mm
• Height: 124 mm
• Width: 40 mm
• Weight: 375 gram
• Antenna connector: BNC female

Inside the box

• Transceiver: Yes
• Battery: Ni-Cd 700 mAh (9.6 Volt)
• Charger: Wall charger
• Antenna: Yes
• Installation manual: English
• Beltclip: Yes
• Hand strap: Yes
